Agriceres

    Sticker Printing Guide

    Plotter: US Cutter MH 871-MK2
    1. 1

      Open app “Sure Cuts a Lot Pro” located on the desktop of the marketing pc.

    2. 2

      Make a new design or select an existing one.

      2.1 If the stickers are in common use, it can be located in the path
      "\\vedaserver\Marketing\Stickers" such as web page, telephone number, logo among others.

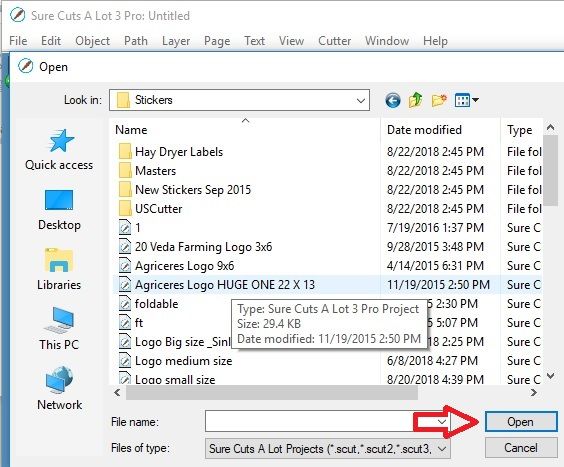

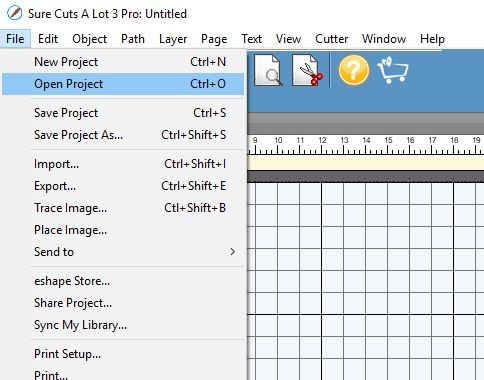

      Click File –> Open Project, select file in path and click Open.


      2.2 If is design new.Click File –> New Project, select file in path and click Open.





      Note: the work area is 30 inch x 28 inch where 30 inch is where 30 is the width of the printer



    3. 3

      Add or Modify Sticker

      For add or modify stickers, select icon text in in the popup menu bar identified with the symbol of T: text.
    4. 4

      For move sticker

      For move sticker, select icon in the pop-up menu bar identified with the arrow symbol.

    5. 5

      Cut Sticket

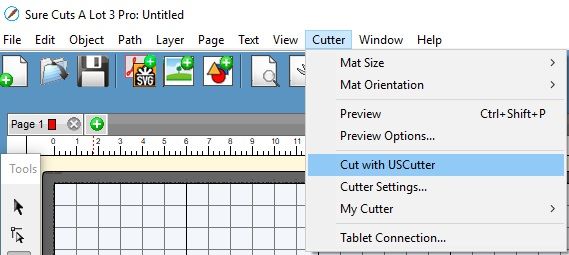

      5.1 Select Cutter --> Cut with USCutter option.

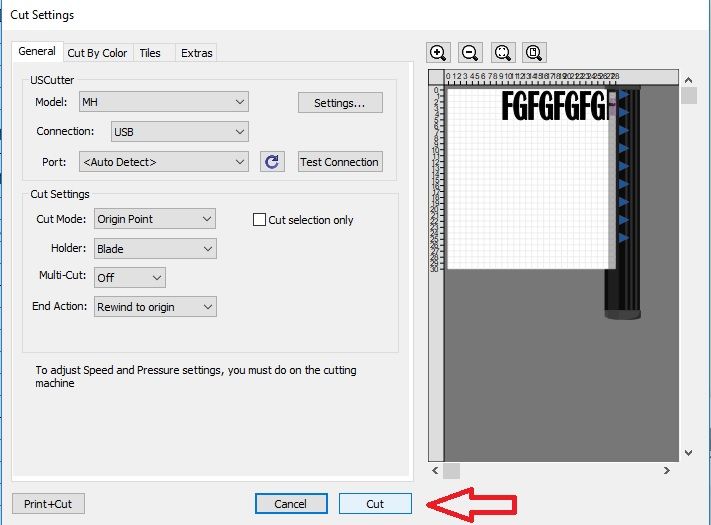

      5.2 Verify preview and click Cut option.
